Side View Camera System
侧视摄像机系统是消除汽车侧镜的死角、提高停车便利性和行驶稳定性的系统。
优点
优秀的低照度特点
- - 0.5 lux的黑暗的环境中也非常清晰的影像
死角地带最小化及广阔的视野
清晰的影像质量
最佳的分辨率及防止光线反射

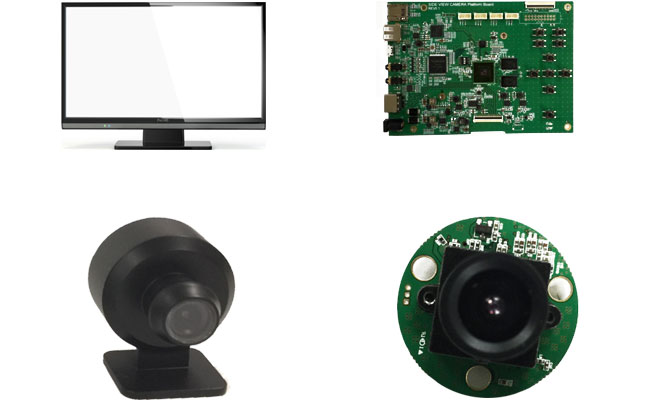

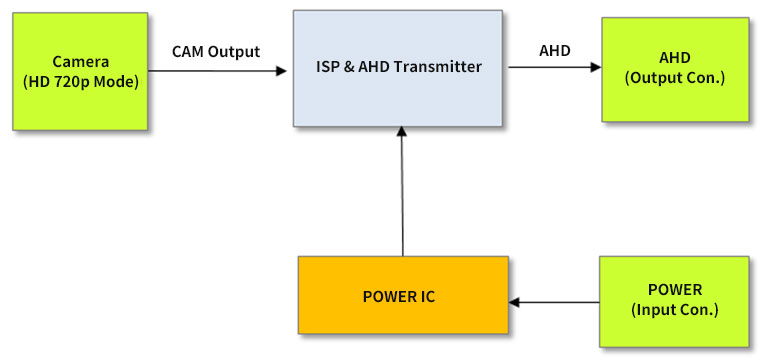

Camera
Camera Specification
| Image | High Definition and High Dynamic Range |
| Image size | Diagonal 6.46 mm(Type 1 / 2.8) |
| Illumination | Min. 0.5 lux |
| Input Drive Freq. | 74.25 Mhz / 37.125 Mhz |
| Interface | AHD |

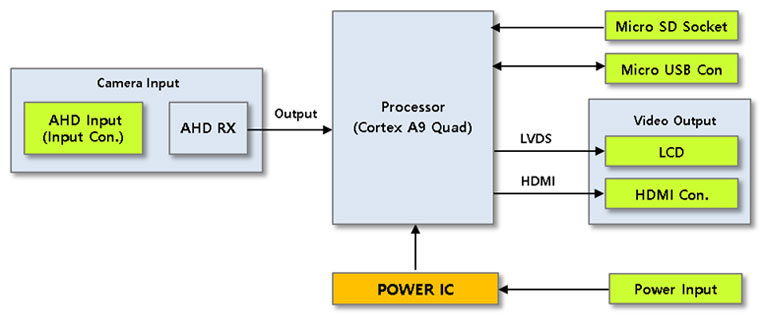

Display
Display Specification
| TFT-panel | IPS |
| Resolution | 1280 X 3(RGB) X 800 |
| LCD Size | 10.1” |
| Interface | LVDS |
System
System Specification
| Operating Temp | -30 ℃ ~ 85 ℃ | |
| Operating Voltage | Camera | DC 5V |
| Display | DC 12V | |
| Module Size | Camera | 50mm x 47mm x 61mm |
| Display | 24mm x 17mm x 27mm | |
