Broadcasting Module

Broadcasting module is a compact plug-in module for DMB broadcasting and TPEG reception.

Advantages

Broadcasting module supports existing DMB and HD DMB and can receive high-definition(HD) high quality video data.

Broadcasting module is a module optimized for implementing the automotive mobile broadcast reception system.



Major Specification

MCU Cortex-A9
Video/Audio Output HDMI 1.4a, BT656
I2S
Interface SPI, UART, USB
Codec Video: H.265, H.264
Audio: HE-AAC v2, BSAC

Basic Specification

Operating Temperature -40℃ ~ 85℃
Operating Voltage 3.3V
Module Size 105mm x 40mm
CPU ARM® Cortex-A9
Broadcasting Reception Frequency KOREA BAND (175.280MHz ~ 214.736MHz)
Interface UART for Module control
CCIR656 for Video/ IIS for Audio
HDMI for Audio/Video

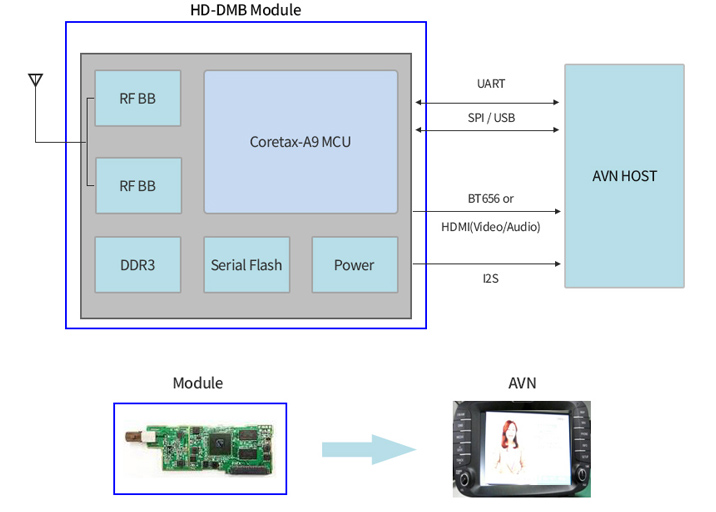

Major Parts MCU(A/V Processor), RF Baseband(With TPEG), DDR3, Serial flash
